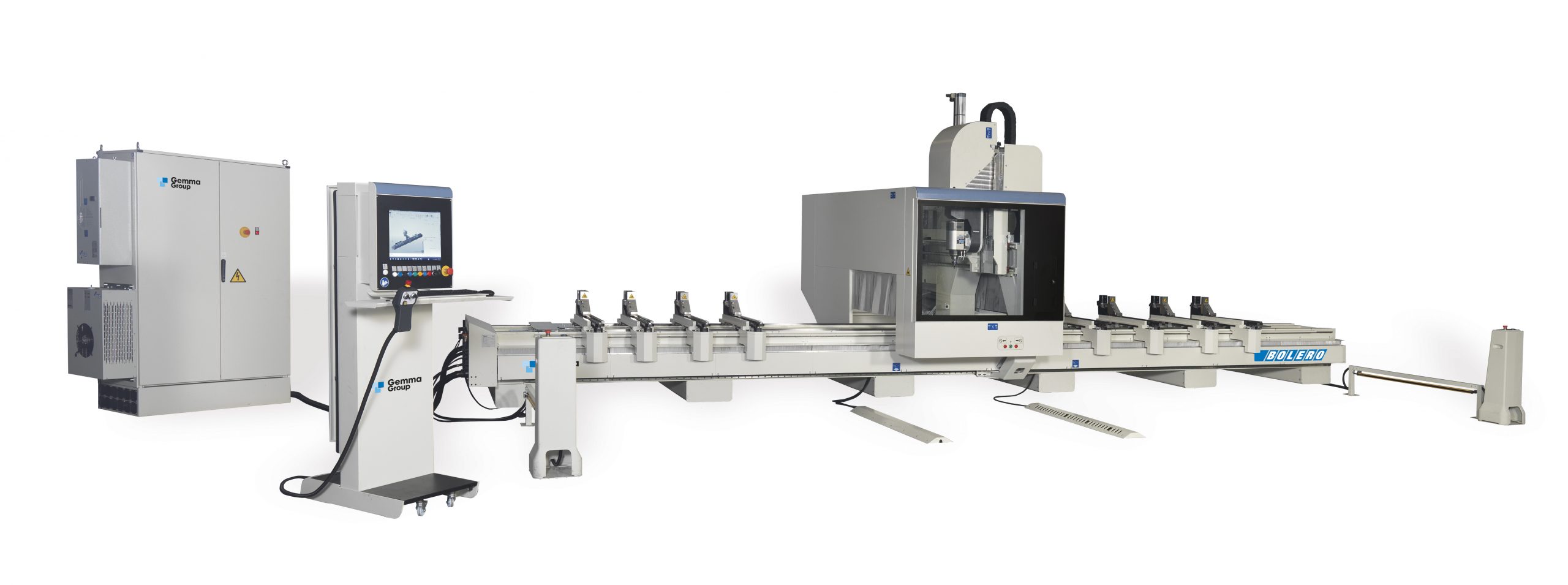

CNC-controlled 4-axis machining center for machining aluminum, steel, light alloys and PVC components. The machine has a strongly ribbed base in electro-welded steel with a mobile upright with a closed bridge. Thanks to its sturdiness and stability, it guarantees high quality workmanship and reliability over time. The operating unit is made up of an 8.5 kW electro-spindle and is equipped as standard with an ISO30 tool attachment which is also functional for carrying out heavy machining. The maximum rotation speed is 24,000 rpm with regulation by static inverter. Bolero 4 is equipped with an automatic tool change device with 12-position magazine. The worktop is equipped as standard with 8 locking vices with automatic movement by means of a head controlled by the NC. The stroke of the X axis is 7. 000 mm (optional extension up to 9,400 mm). Pendulum machining is possible (optional). The operator interface is on a PC-Windows with a 17 ”screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
