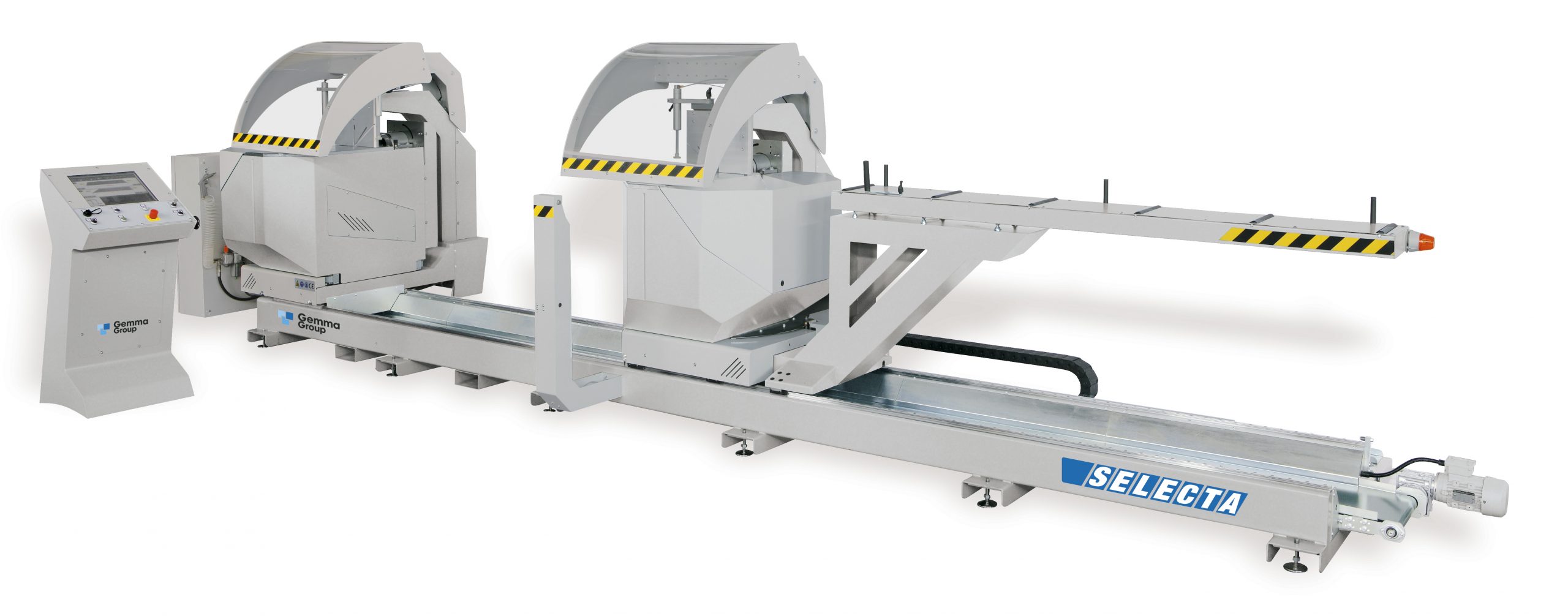

Double-head cutting-off machine with front blades. Heavily ribbed electro-welded steel basement. Left cutting head fixed, right cutting head with automatic movement controlled by software. Roller support on the right moving head. Basic A has 4 horizontal pneumatic clamps. The cutting heads are controlled by a 1,8 kW motor at 1.800 rpm and are equipped with widia blades diam. 500 mm. Micro-drop lubrication system. X axis stroke 4.600 mm. X axis movement on linear guides with ground rack. Tilting angles 20°-135° with electronic regulation. Possibility to work on profiles longer than the X axis’ stroke. Operator’s interface on PC-Windows with 10,4” color screen. The machine is equipped as standard with safety and protection devices in compliance with EU regulations.
