Prisma

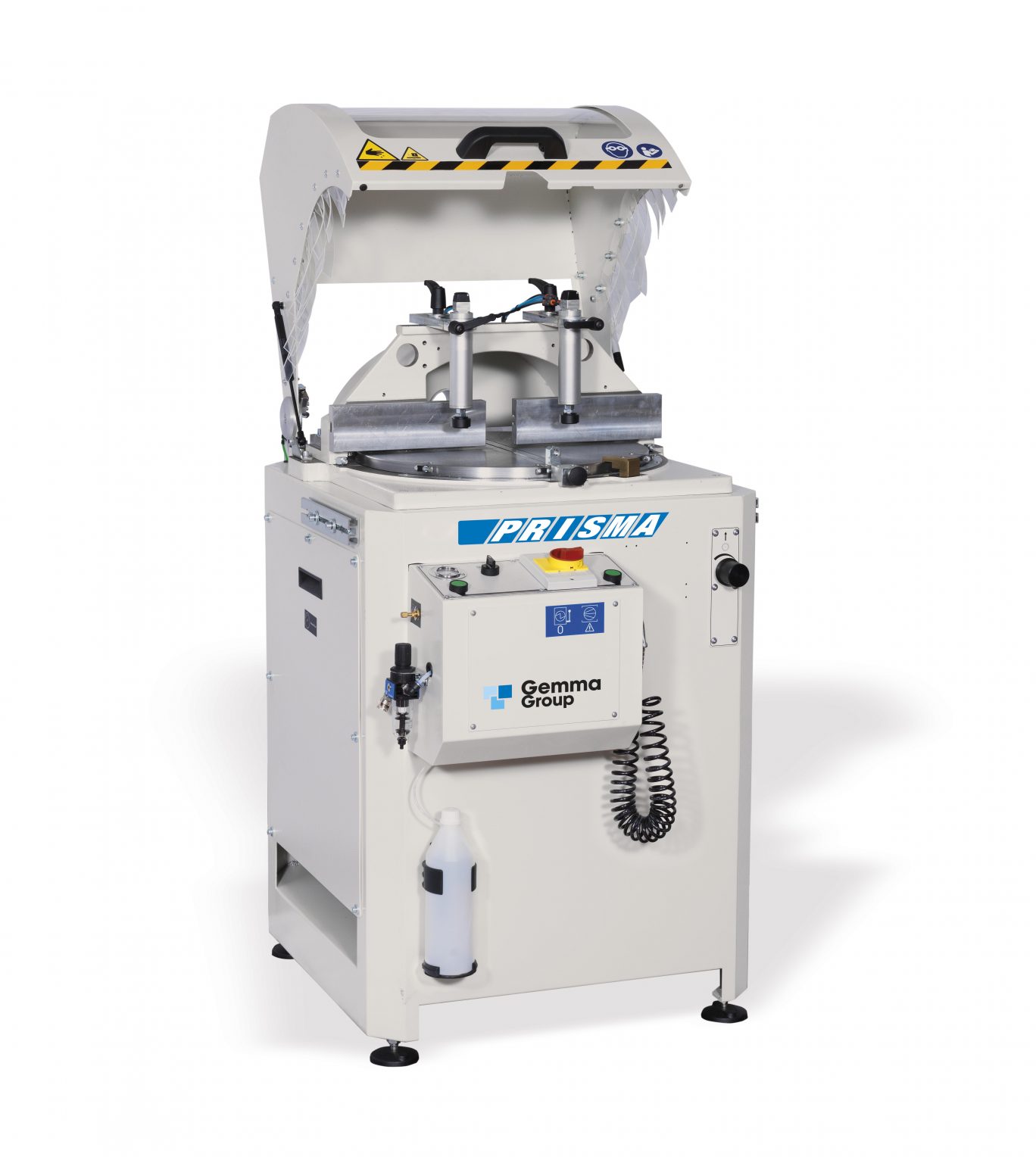

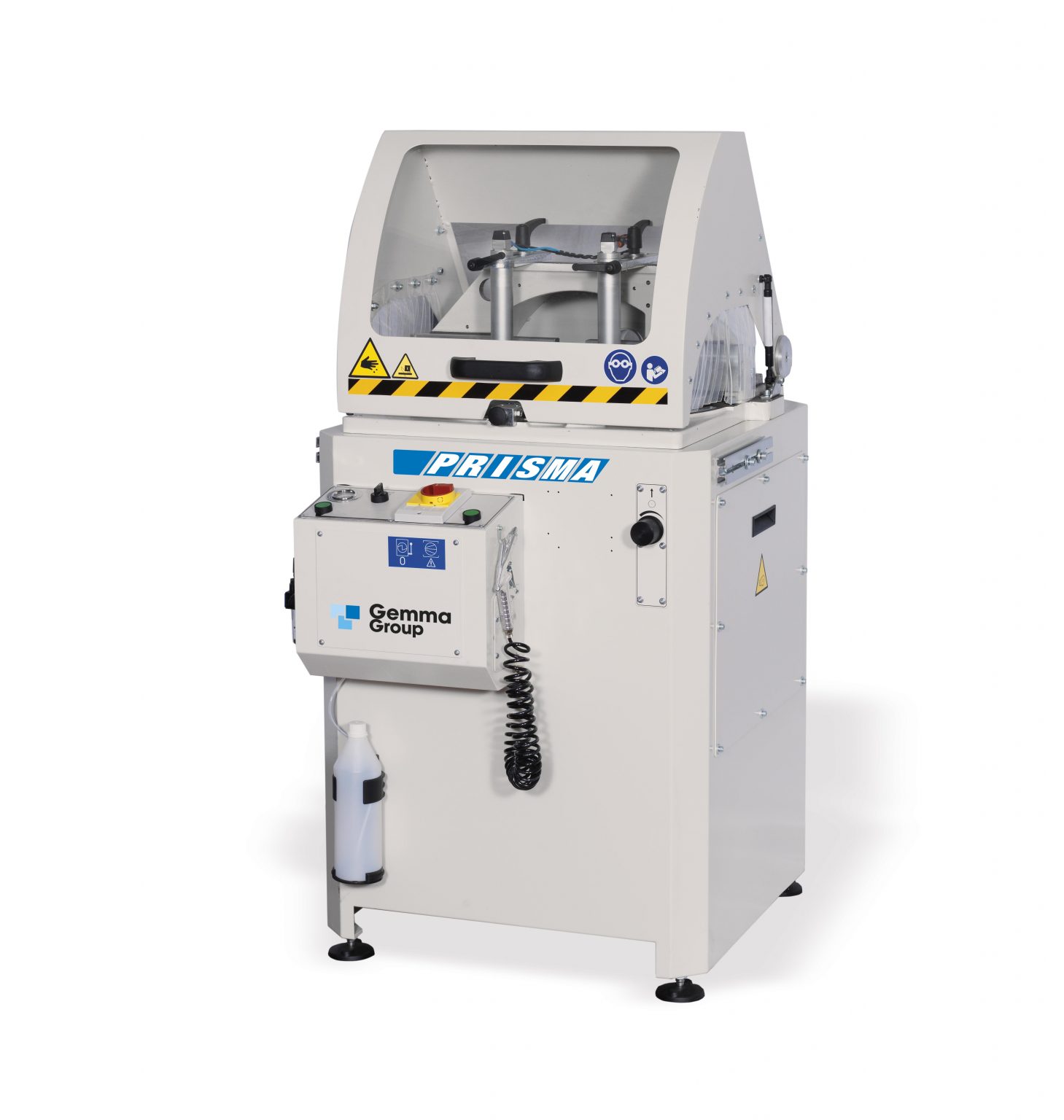

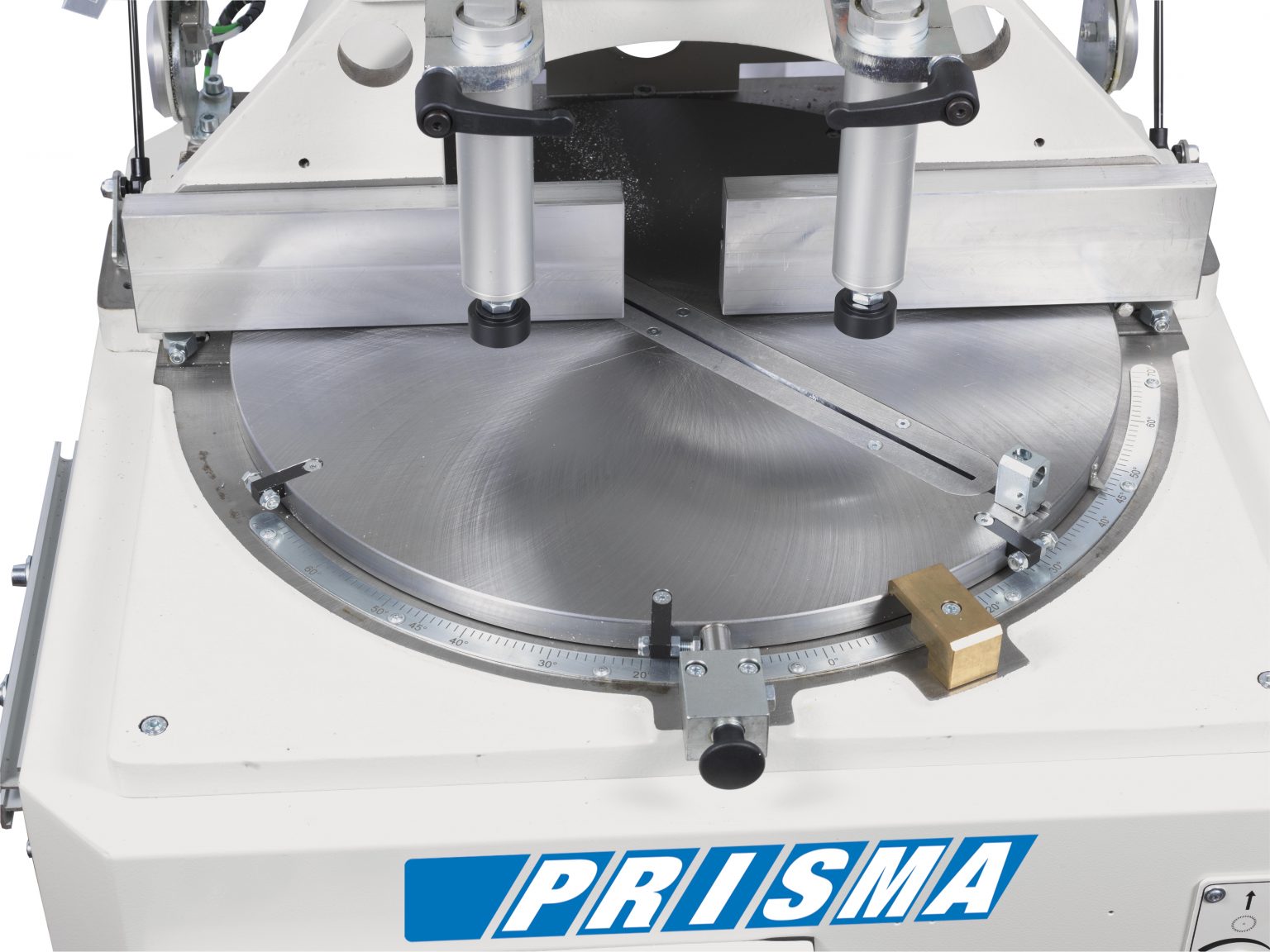

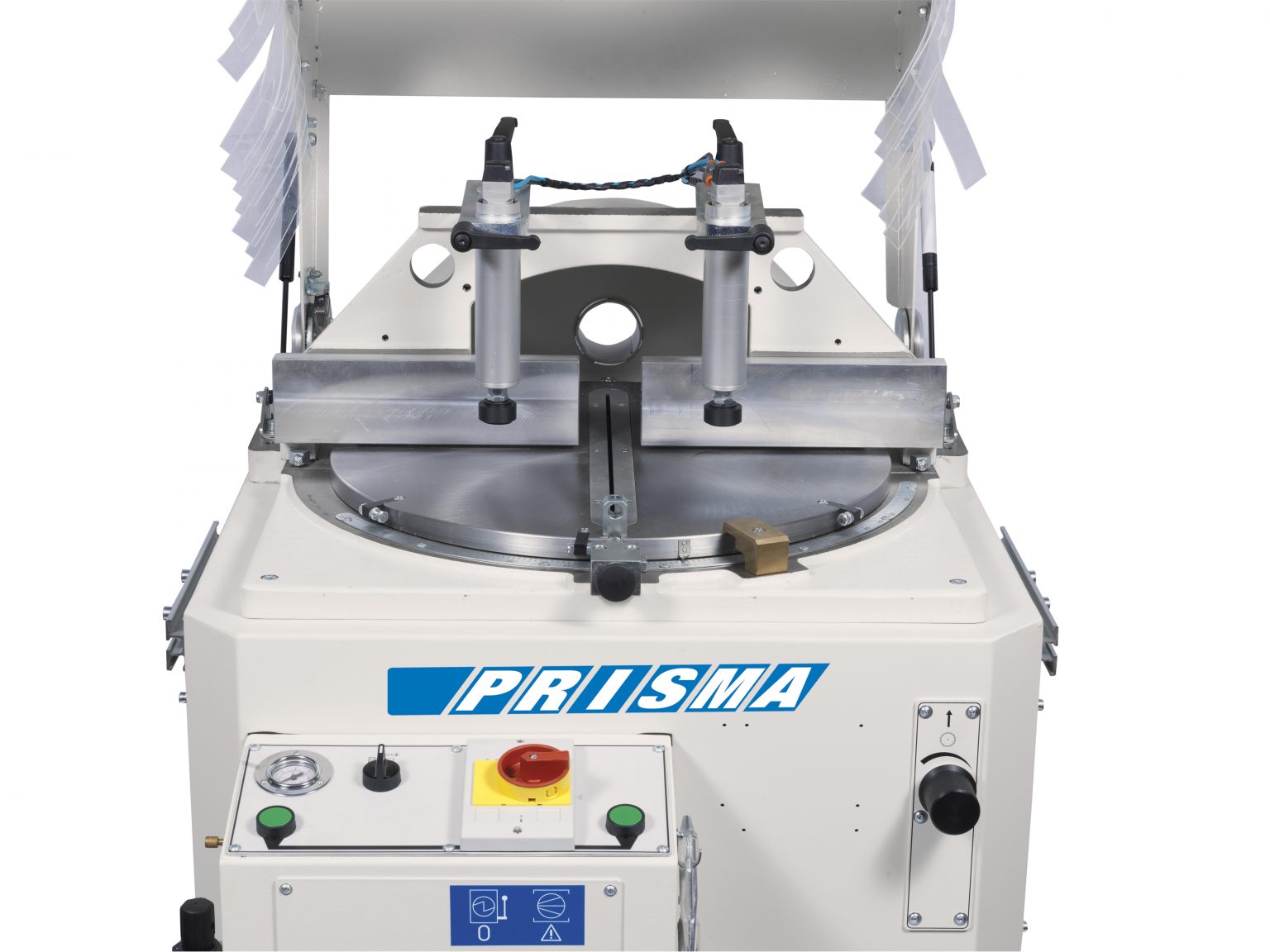

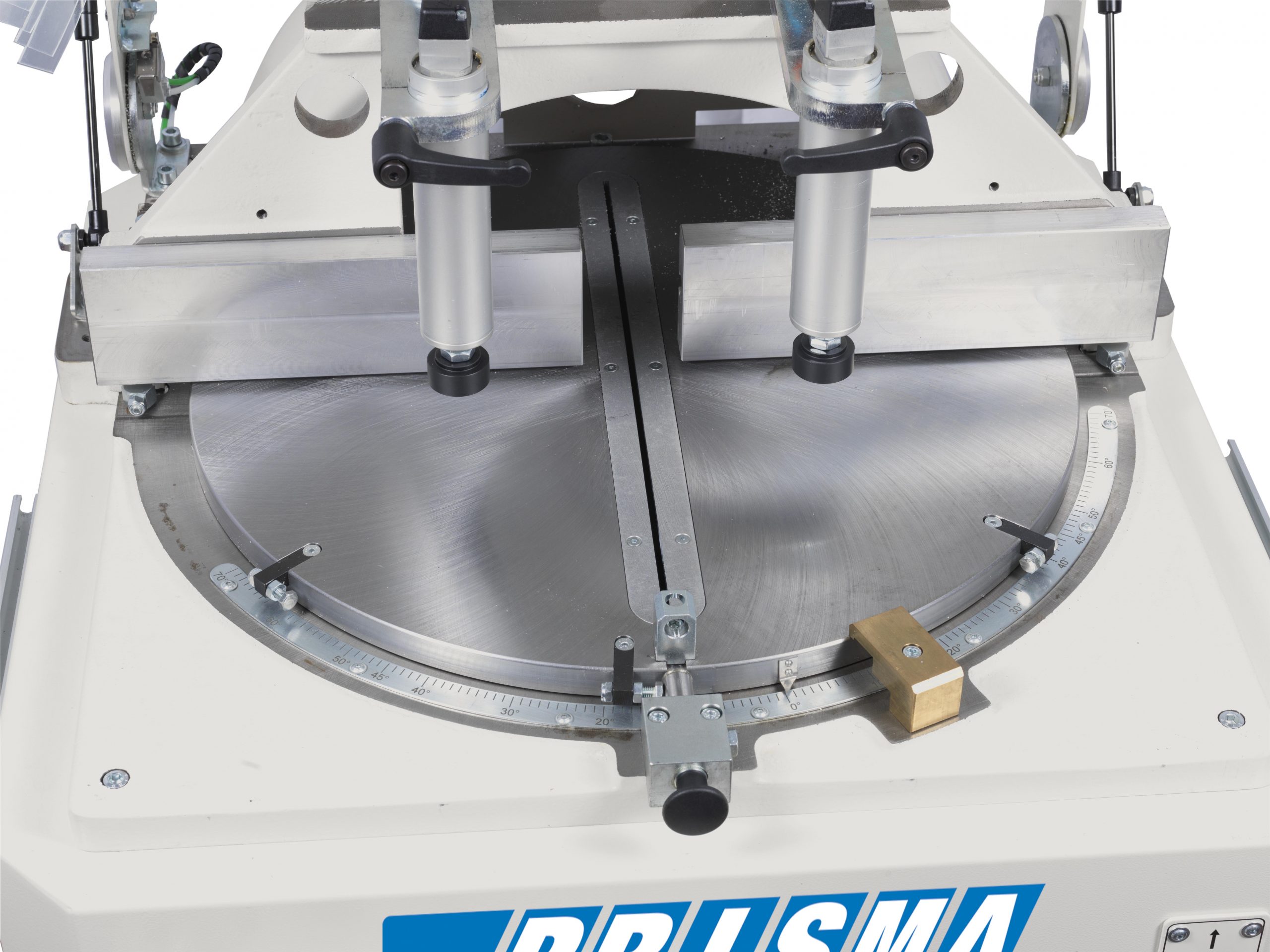

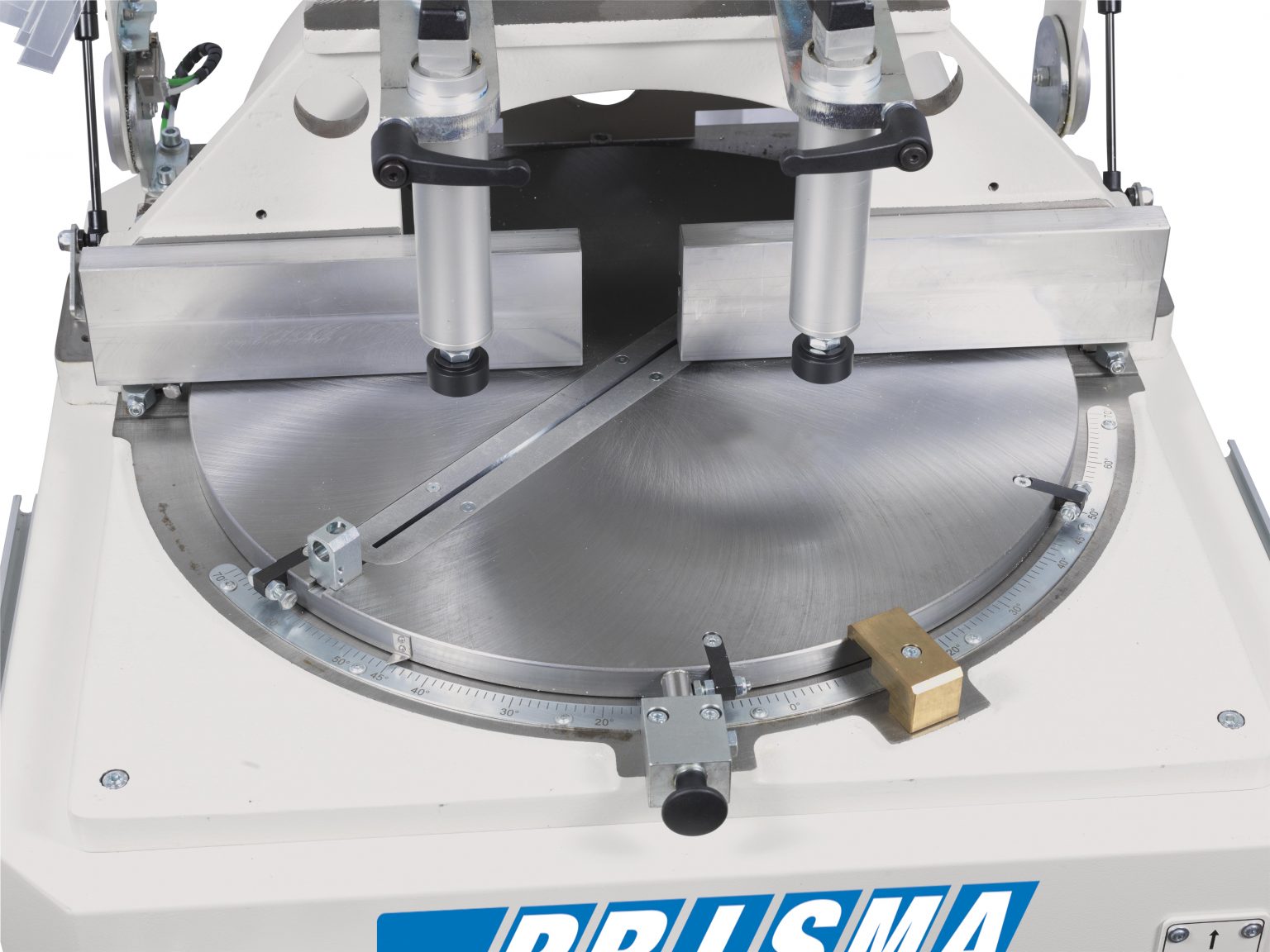

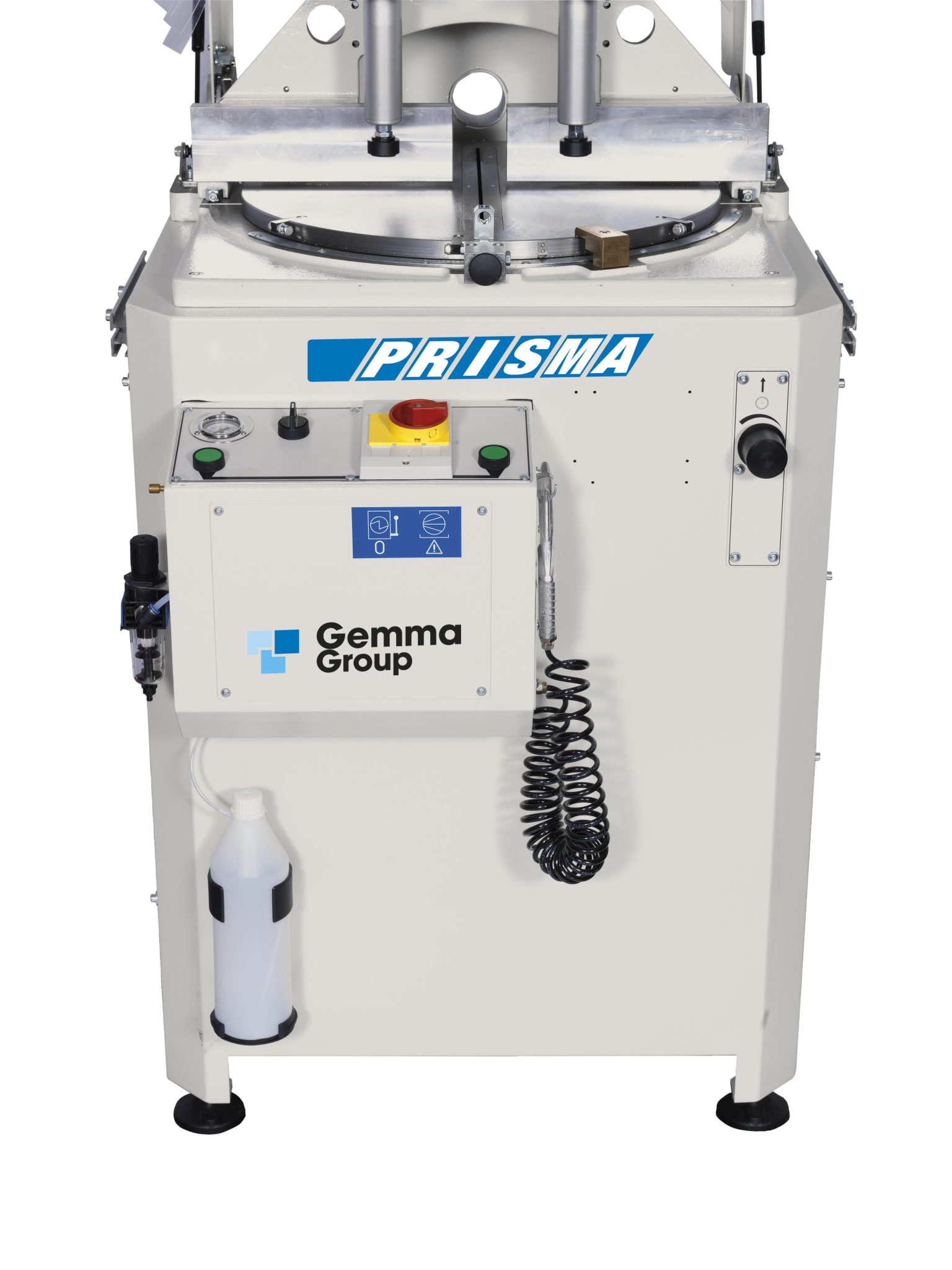

Single-head cutting-off machine with upstroke blade 450 mm. Electro-welded steel basement. Prisma has 2 vertical pneumatic clamps. Cutting unit controlled by a 3 kW motor at 2.800 rpm with widia blade diam. 600 mm. Venturi lubrication system. Worktable with mechanical stops for quick angle selection (45°/90°). Tilting angles from 10° to 170°. The machine is equipped as standard with safety and protection devices in compliance with EU regulations.
